BabyLife KLA-145LT

Tunnel Type LED Phototherapy Unit

Featured benefits

  • A 360-degree superintensive phototherapy device
  • Even light distribution
  • Reduced treatment time for hyperbilirubinemia
  • Mobile floor stand device
  • Heavy-duty stand with 4 castors (2 lockable)
  • 100 % sliding out cradle with net
  • Rails on both side
  • Working & total hour counter & clock
  • 5" touchscreen color LCD with lock
  • Air and skin temperature sensor
  • Adjustable height of the upper tunnel part
  • Adjustable irradiance level
  • The upper and lower part of the tunnel operation can be selected
  • Observation windows on the front and both side
  • Displayed information: date & time, patient information, treatment duration, the distance between the upper & lower part, intensity adjustment, skin temperature, alarms, Fahrenheit/Celsius converter, language, trend

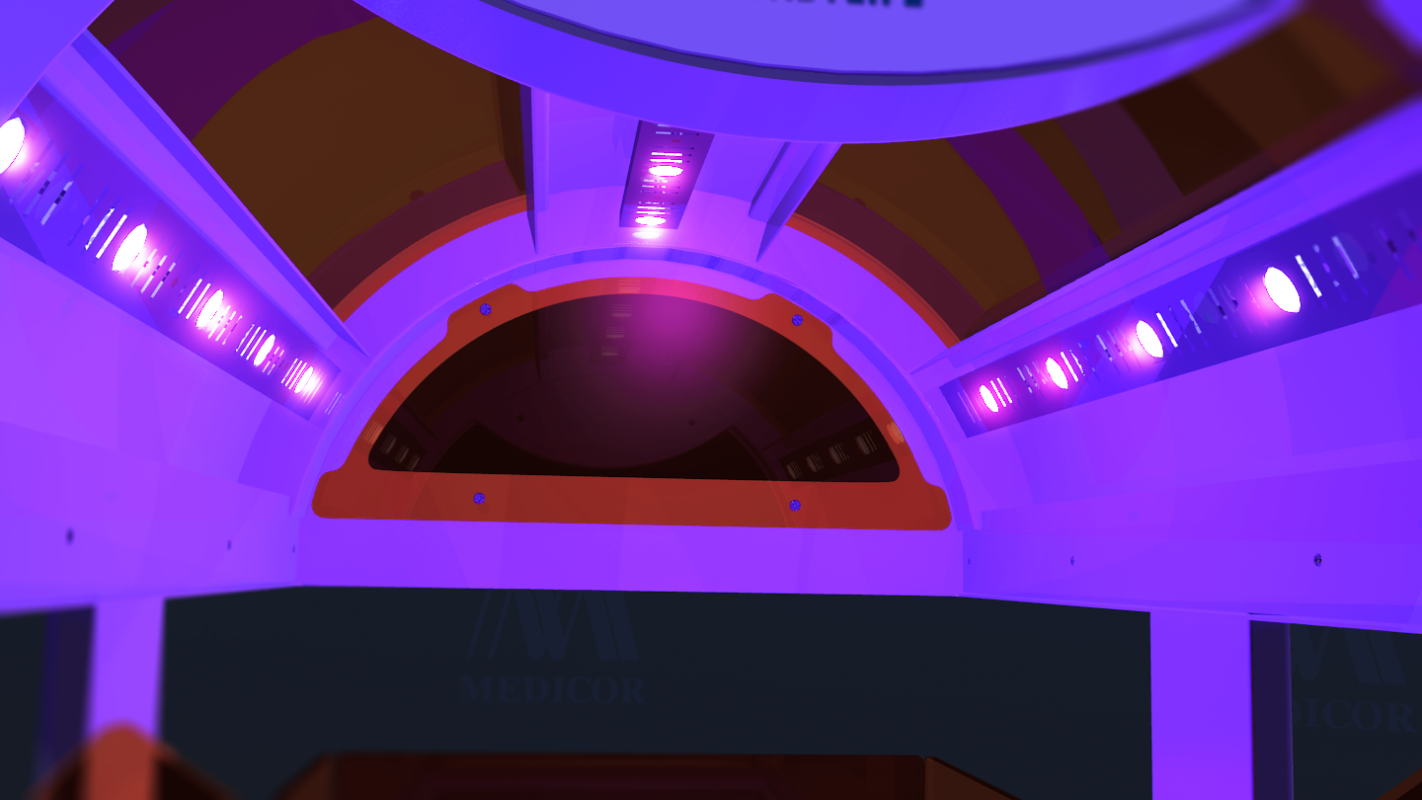

  • 6 pcs LED bar

Technical data

  • The lifetime of the LED bulbs at least 50 000 working hours
  • Range of radiating wavelength: 410/500 nm - Peak wavelength: 450/465 nm
  • Effective radiation intensity: (Ebi): lower part 60 uW/sq.cm/nm, the upper part 60 uW/sq.cm/nm
  • Electric power: 3450 W
  • Mains voltage: 110 - 230 V ± 10%, 50/60 Hz
  • Weight: 90 kg (standard version)
Additional features:
  • SpO2 sensor (optional)
  • Display of hospital's name or other text (optional)
  • Irradiance meter (optional)
  • Eye protection mask (optional)
